Magnetic Switch Tuning Guide: Actuation Distance & Rapid Trigger Settings

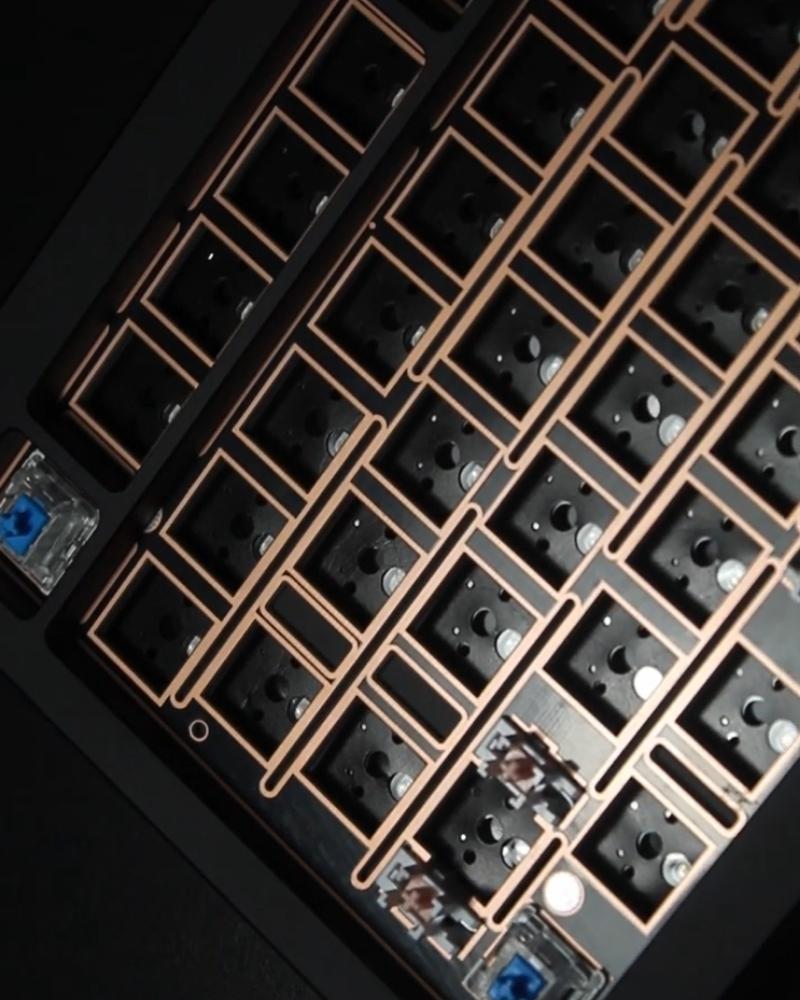

Hall Effect (magnetic) keyboards offer software-level control over key sensitivity. Unlike traditional mechanical switches with fixed physical contact points, magnetic sensors track continuous stem position from top to bottom.

However, maximum sensitivity does not equal maximum control. Setting every key to a 0.1mm hyper-sensitive actuation depth often leads to accidental mistypes, double-inputs, and erratic character registration during long typing or coding sessions.

Tuning a Hall Effect keyboard effectively requires a systematic approach: start with a moderate baseline, test it against your actual workflow, and adjust one variable at a time.

Core Concepts: Actuation Distance vs. Rapid Trigger

Before tweaking software sliders, it is essential to distinguish between Actuation Distance and Rapid Trigger. They control two entirely separate phases of key travel.

+-----------------------------------------------------------------------+
|                    ACTUATION vs. RAPID TRIGGER                        |
|                                                                       |
|  1. Actuation Distance ---> Defines WHEN a key registers (Press)      |
|  2. Rapid Trigger     ---> Defines WHEN a key resets    (Release)    |
+-----------------------------------------------------------------------+

1. Actuation Distance (Downward Press)

Actuation distance defines how far down the switch stem must travel before the software registers a keypress.

• Short Actuation (0.1mm – 1.0mm): Registers inputs instantly with minimal finger movement. Ideal for rapid reactions in competitive games, but prone to accidental triggers if you rest your fingers on keycaps.

• Moderate Actuation (1.5mm – 2.0mm): Replicates the familiar depth of standard mechanical switches. Provides a balanced, predictable feel for daily writing, coding, and general browsing.

• Deep Actuation (2.5mm – 4.0mm): Requires a deliberate, deep stroke to trigger. Useful for high-stakes command keys (like ultimate abilities or macro triggers) to prevent accidental presses.

2. Rapid Trigger (Upward Release & Reset)

Rapid Trigger alters how a key deactivates and prepares to trigger again. Instead of waiting for the switch stem to pass a fixed reset line, the sensor tracks the physical direction of stem movement in real time.

TRADITIONAL RESET (Fixed Point)            RAPID TRIGGER (Dynamic Release)

  [0.0mm] Top Rest                           [0.0mm] Top Rest
    |                                          |
  [2.0mm] Actuation Point                    (Press Down 0.2mm)  ---> ACTUATES
    |                                          |
  [4.0mm] Bottom-Out                         (Lift Up 0.1mm)    ---> RESETS INSTANTLY
    |                                          |
  [1.5mm] MUST RETURN PAST THIS LINE!        *Resets dynamic anywhere in travel*

• How It Works: The instant a key stops moving downward and travels upward by a set sensitivity threshold (e.g., 0.1mm–0.3mm), the key instantly deactivates. The moment it moves downward again by that same threshold, it reactivates.

• The Advantage: Enables rapid key fluttering and instant direction changes (counter-strafing) without needing full key travel loops.

A Step-by-Step Tuning Process

To find the optimal balance between speed and input accuracy, follow this 6-step calibration routine:

+-----------------------------------------------------------------+
| STEP 1: Save Default Profile Backup                             |
+-----------------------------------------------------------------+
                                |
                                v
+-----------------------------------------------------------------+
| STEP 2: Isolate Use Case (Work vs. Competitive Play)            |
+-----------------------------------------------------------------+
                                |
                                v
+-----------------------------------------------------------------+
| STEP 3: Adjust Actuation in Small Increments (0.2mm - 0.5mm)    |
+-----------------------------------------------------------------+
                                |
                                v
+-----------------------------------------------------------------+
| STEP 4: Enable Rapid Trigger Conservatively (0.2mm Threshold)   |
+-----------------------------------------------------------------+
                                |
                                v
+-----------------------------------------------------------------+
| STEP 5: Run Input Error Testing (Watch for Accidental Touches)  |
+-----------------------------------------------------------------+
                                |
                                v
+-----------------------------------------------------------------+
| STEP 6: Save Separate Profiles for Typing and Gaming            |
+-----------------------------------------------------------------+

1. Back Up Defaults: Always save your factory profile so you can revert if settings become unstable.

2. Define the Task: Do not attempt to tune for daily programming and competitive gaming on the same profile.

3. Adjust Actuation Gradually: Shift actuation distance in 0.2mm to 0.5mm steps rather than jumping straight to extremes.

4. Enable Rapid Trigger Conservatively: Start with a moderate release threshold (e.g., 0.3mm–0.5mm) before testing finer sensitivities.

5. Test for Input Errors: Type a long paragraph or play a warm-up match. Watch for double-typed characters, unintended movement, or keys triggering when resting your hands.

6. Assign Dedicated Profiles: Use onboard memory or driver profiles to switch between a Typing Profile (predictable, moderate settings) and a Gaming Profile (responsive, tuned settings).

Recommended Baseline Settings by Task

Because sensor resolution, spring weight, and software implementation vary across manufacturers, treat these settings as practical starting baselines:

Per-Key Customization: Targeting Movement Keys

You do not need to apply uniform sensitivity across the entire board. The most effective setups use per-key customization:

• Movement Cluster (W, A, S, D): Set shorter actuation (0.8mm) and aggressive Rapid Trigger (0.15mm) for instant direction changes.

• Primary Alpha Keys: Keep moderate actuation (1.8mm) to preserve comfortable typing mechanics.

• Modifier & Spacebar Keys: Set deeper actuation (2.0mm+) to avoid misclicking heavy commands or resetting jump actions accidentally.

Common Tuning Mistakes to Avoid

• Setting Everything to 0.1mm: Hyper-sensitivity leads to frustration during normal typing. Resting hand weight alone can cause accidental inputs.

• Changing Multiple Values Simultaneously: If an input feels off, you will not know whether actuation depth, Rapid Trigger sensitivity, or spring weight caused the issue.

• Copying Pro Profiles Blindly: Sensor calibration, keycap mass, and individual finger pressure vary significantly between setups.

• Ignoring Hardware Capabilities: Verify whether your specific keyboard supports per-key Rapid Trigger or global adjustments only.
